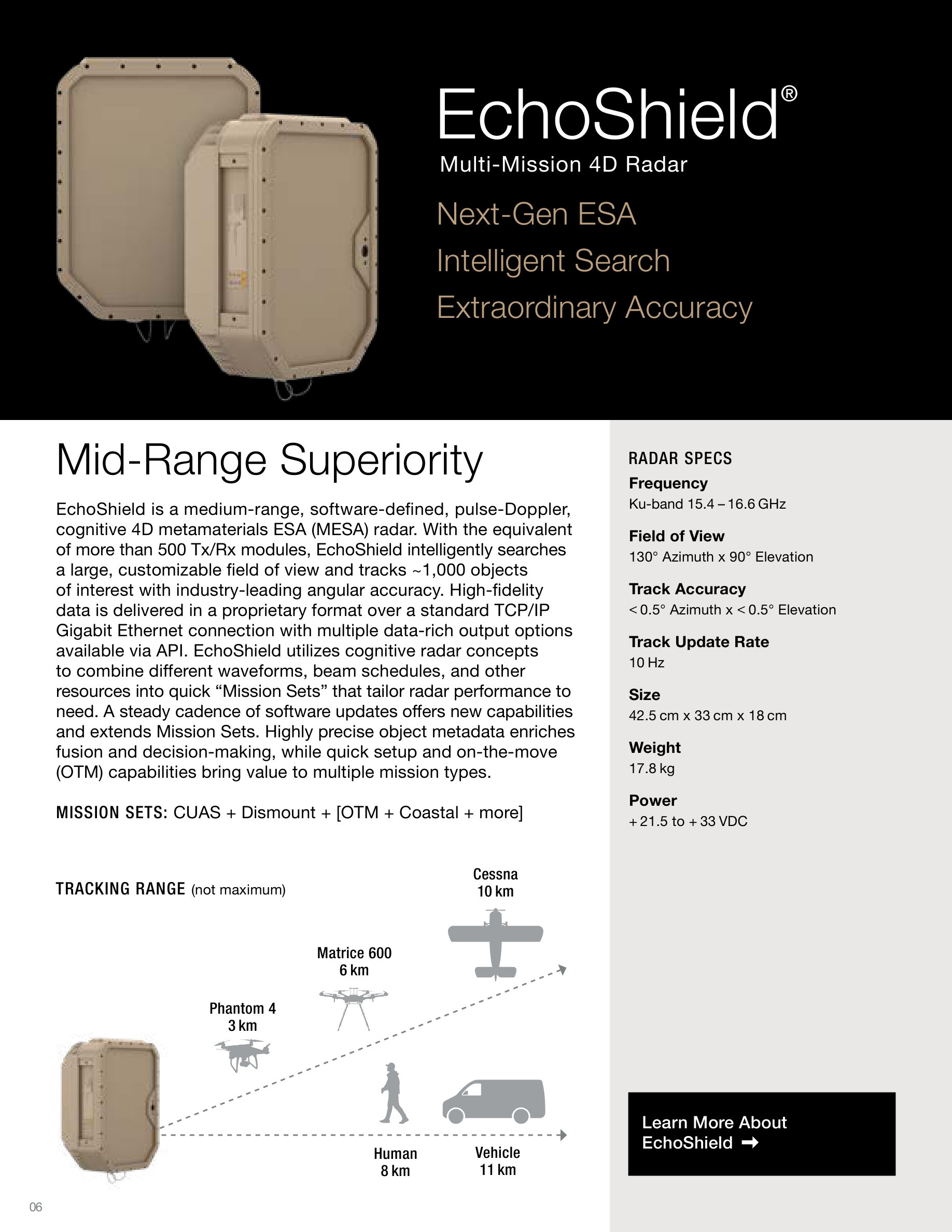

EchoShield · brochure page 06 of 12

Echodyne’s brochure and the deployment kits for EchoShield and EchoGuard. Choose a page, use the arrows or your keyboard, and click the page to open it full size.

Echodyne brochure · MESA Radar Solutions for DefensePDF
EchoShield kits and accessoriesPDF
EchoGuard kits and accessoriesPDF

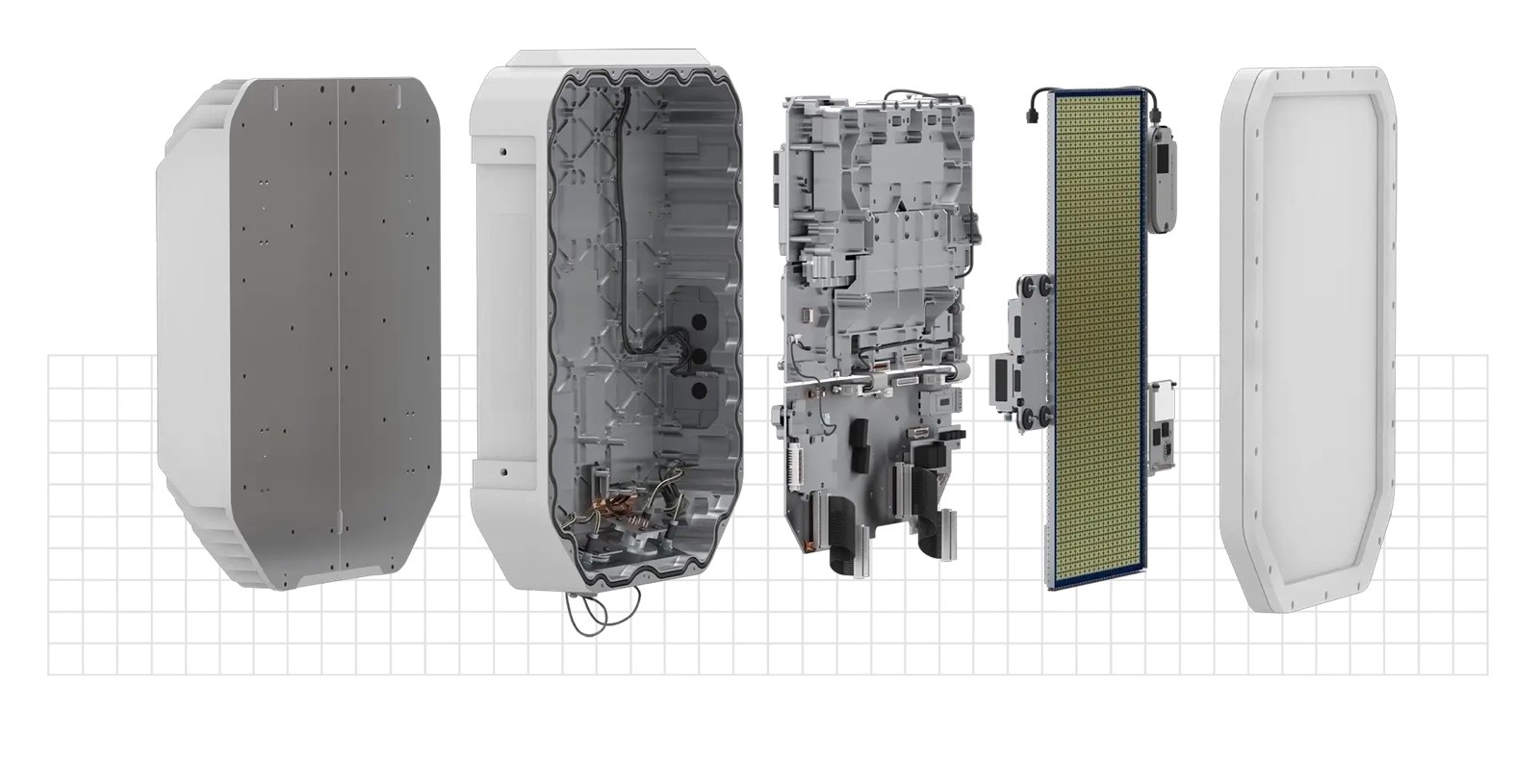

EchoShield 4D MESA radar — exploded component view
EchoShield · exploded component view
EchoShield · Heart of the System

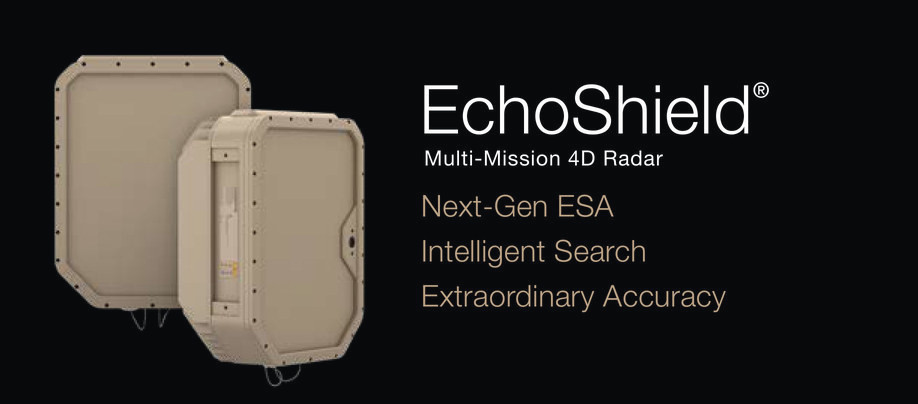

EchoShield 4D MESA Radar

Authorized Echodyne Distributor — Middle East

Detection is where every engagement begins. EchoShield — a software-defined, pulse-Doppler, cognitive 4D metamaterials (MESA) radar — sits at the core of every RAVEN configuration, searching a wide field of view and tracking more than a thousand objects at once.

130°×90°Field of View
1,000+Tracked Objects
10 HzTrack Update
<0.5°Track Accuracy
30 kmInstrumented Range
Radar & Data
Frequency
Ku-band · 15.4–16.6 GHz
Type
Software-defined pulse-Doppler MESA
Data
10 GbE spectrograms · 1 GbE tracks
Control
Gigabit Ethernet
Mount
4 × M6 · 200 mm pattern
SWaP & Environmental
Size
42.5 × 33 × 18 cm
Weight
17.8 kg
Power
21.5–33 VDC · <250 W
Temp
–40 °C to +65 °C
Rugged
IP67 · MIL-STD-810H
Detection & Tracking Range

Target Detection & Tracking Range

Counter-UAS Mission Set

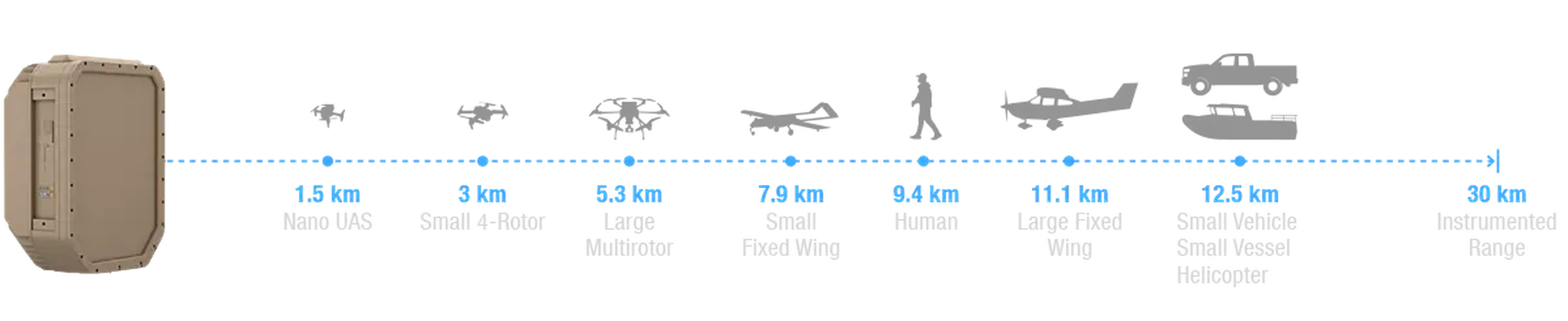

EchoShield mean tracking ranges by target class: 1.5 km nano UAS, 3 km small quad-rotor, 5.3 km large multirotor, 7.9 km small fixed-wing, 9.4 km human, 11.1 km large fixed-wing, 12.5 km small vehicle and vessel, 30 km instrumented range

Mean tracking ranges by target class. The same software-defined radar reconfigures for coastal surveillance, airspace management, and on-the-move missions — no hardware change.

EchoShield + EchoGuard · Range by UAS Group

Radar Range by Target Group

Wide-Area + Close-In Layers
EchoShieldWide-Area · to ~13 km
Nano
Group 1
Group 2
Group 3
4+
EchoGuardClose-In · inside ~3 km
G1
G2
G3
4+
02468101213 km

EchoShield delivers wide-area, long-range detection out to roughly 13 km; EchoGuard covers the close-in band inside ~3 km. Layered radar coverage shown by UAS group class — Group 1 through Group 4+.

In RAVEN, and in the region

The first sensor in RAVEN

RAVEN Fixed Site at dusk, its four EchoShield radars around the mast head
RAVEN Fixed Site · four EchoShield radars for 360° · product visualisation

RAVEN Fixed Site carries four EchoShield radars for a full 360°. RAVEN Compact carries one, covering a 130° × 90° sector. Every track goes to RAVEN C2, where it is fused with the cameras and radio sensing into one picture.

  • Site survey and coverage modelling against the real terrain
  • Integration into RAVEN C2 or the customer’s own command system
  • Installation, commissioning and operator training in the region
  • Maintenance and software updates through the service life
  • Export licensing and end-use documentation prepared with the customer
Authorized Echodyne Distributor — Middle East

See it track, over your own site.

Request a demonstration Request the datasheet

Specifications from Echodyne’s published datasheets. EchoShield, EchoGuard and MESA are trademarks of Echodyne Corp.
