RAVEN Counter-UAS Family — the integrated counter-UAS family by G7X Defense across fixed-site, tactical vehicle, mobile, maritime, public security, and interceptor-layer configurations.
Every RAVEN configuration is built on the same proven sensor-to-effector chain and governed by one command system. Fixed sites, mobile nodes, vehicles, ships, and public venues all run one doctrine — so a single force fields one training pipeline and one logistics base across land, sea, and air.
4D MESA radar provides wide-area, 360° surveillance and feeds live tracks.
RAVEN-OS fuses tracks, prioritizes threats, and slews sensors onto target.
EO/IR — thermal, daylight, SWIR — confirms and classifies with AI assistance.
Operator authorizes the response per rules of engagement — human in the loop.
Graduated response: non-kinetic RF takeover or kinetic interceptor — soft and hard kill.

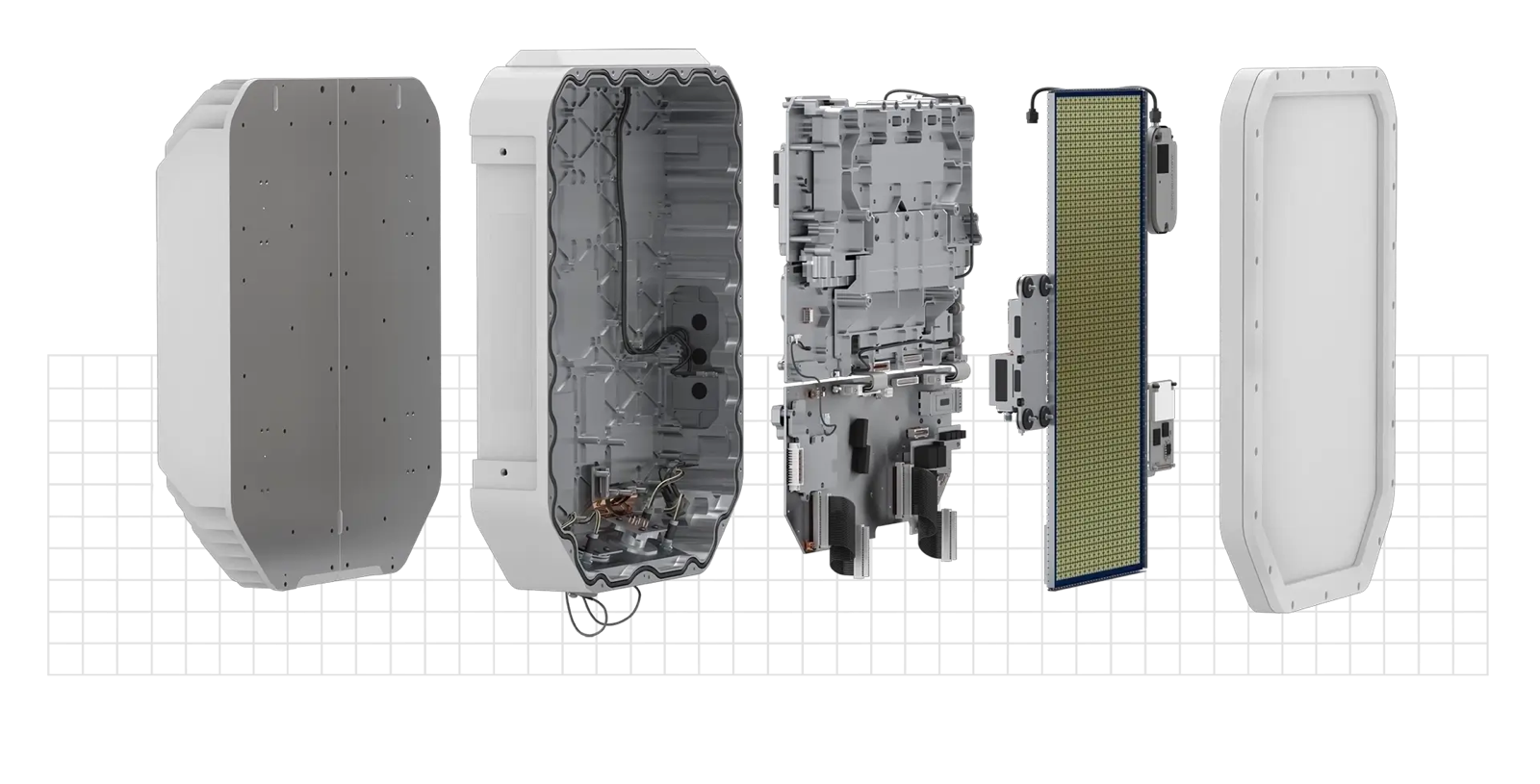

EchoShield — a software-defined, pulse-Doppler, cognitive 4D MESA radar. The detection core of every RAVEN configuration.
G7X · Authorized Echodyne Distributor — Middle EastDetection is where every engagement begins. EchoShield — a software-defined, pulse-Doppler, cognitive 4D metamaterials (MESA) radar — sits at the core of every RAVEN configuration, searching a wide field of view and tracking more than a thousand objects at once.

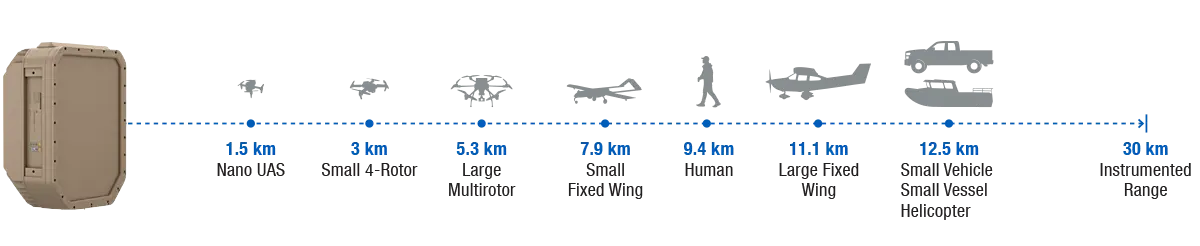

Mean tracking ranges by target class. The same software-defined radar reconfigures for coastal surveillance, airspace management, and on-the-move missions — no hardware change.
EchoShieldWide-Area · to ~13 km
EchoGuardClose-In · inside ~3 kmEchoShield delivers wide-area, long-range detection out to roughly 13 km; EchoGuard covers the close-in band inside ~3 km. Layered radar coverage shown by UAS group class — Group 1 through Group 4+.
The operating core of the entire family — built on the Palantir AI backbone, fusing every sensor and effector into one operational picture at machine speed, with engagement authority retained by the operator.

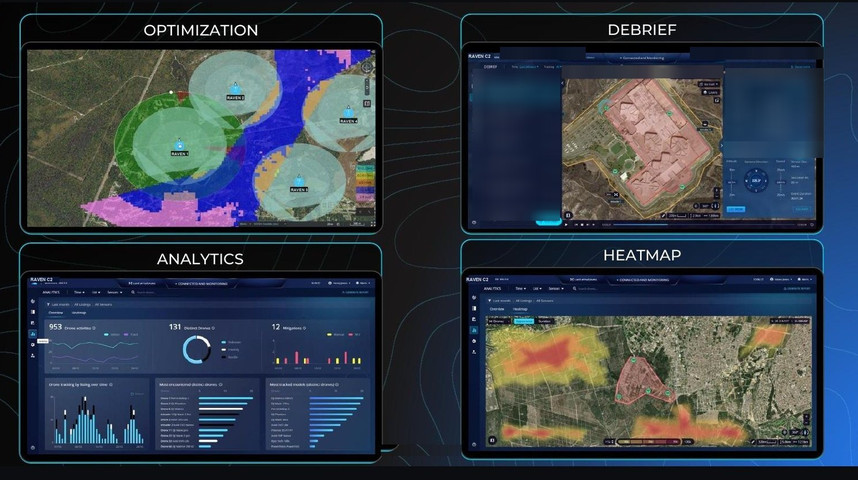

Every sensor — radar, EO/IR, and RF — streams into RAVEN-OS, the mission brain built on the Palantir AI backbone. It fuses the feeds into one decision-ready picture at machine speed, then orchestrates the optimal effector on operator authorization — assessing and logging every action.
National C-UAS command · multi-site critical-infrastructure protection · integrated air-defense coordination.

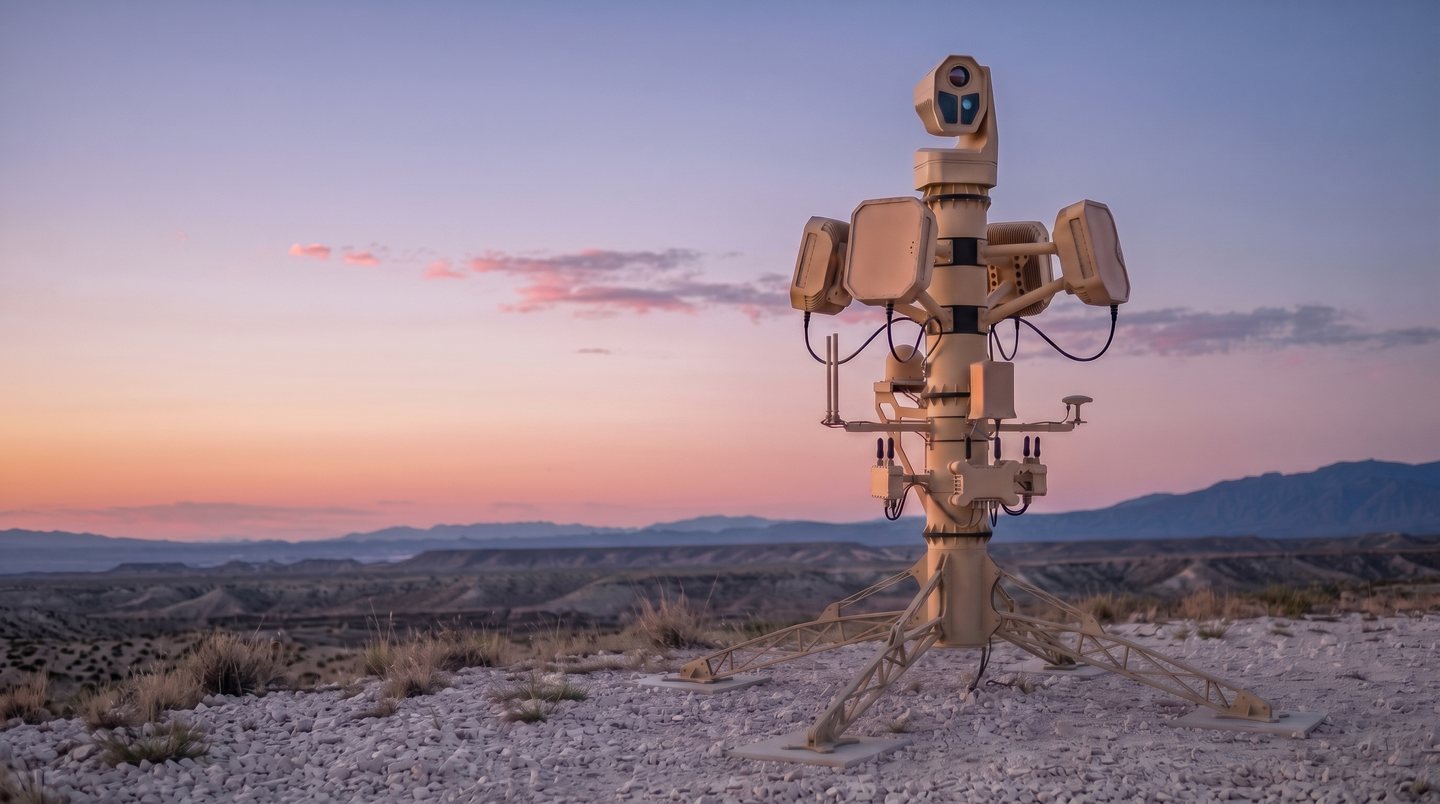

Permanent, multi-layer 24/7/365 protection for critical infrastructure and high-value bases — the proven baseline of the family.
A permanent, multi-layer counter-UAS installation. A 4D MESA radar provides 360° wide-area surveillance; the EO/IR suite confirms the target; and a layered defeat suite engages — all under one command system.
Airbases · oil & strategic facilities · ports · military installations.

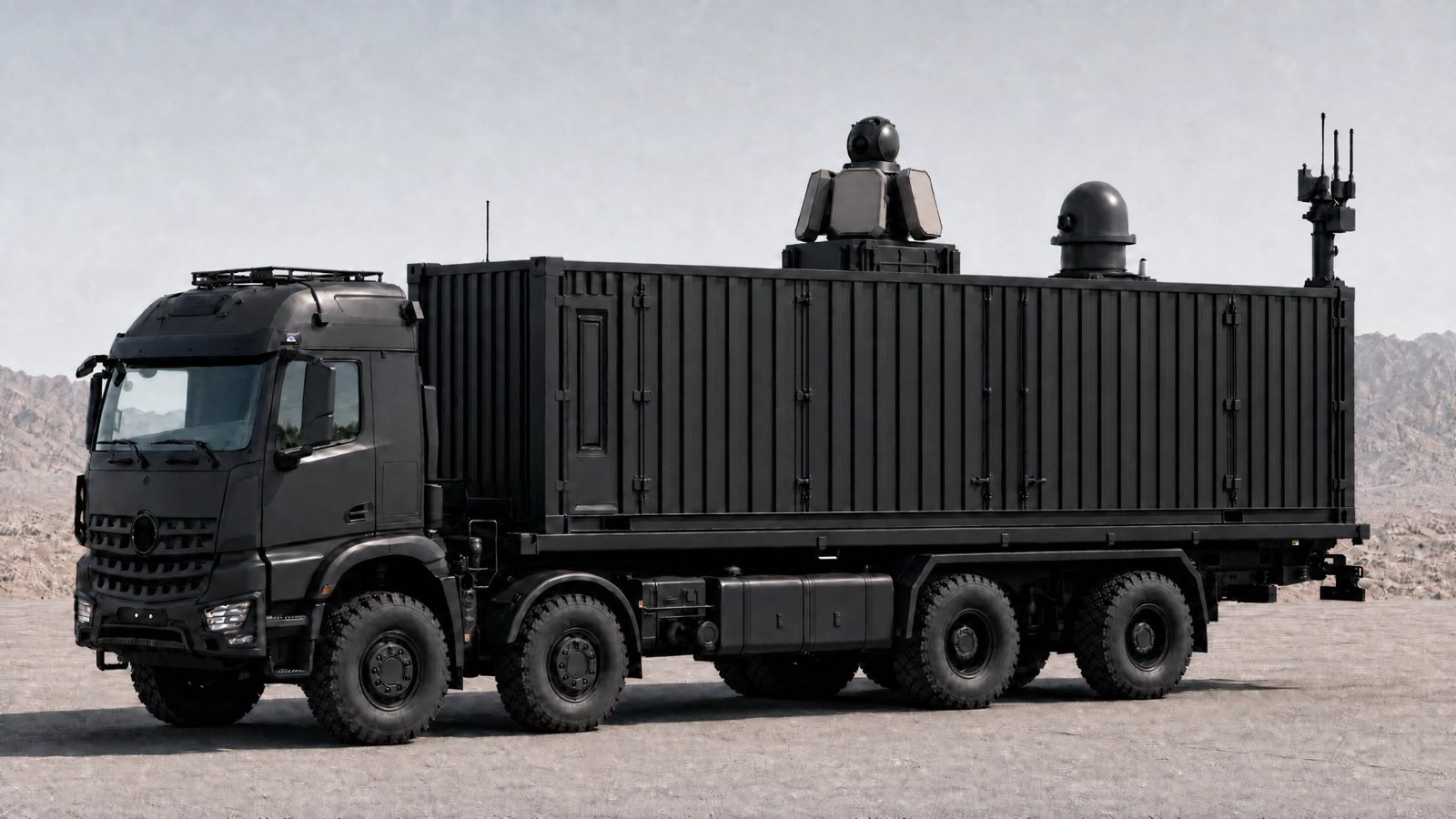

Full RAVEN capability in a single rapidly deployable container — positioned, linked, and online wherever protection is needed.
Two functional halves: an interceptor bay with an opening roof for vertical launch, and a 5-operator command room. On arrival the node raises sensors, self-tests, links via SATCOM, and begins autonomous surveillance — the same detect-to-defeat chain as the fixed site.
Rapid deployment · changing sites · mobile force & asset protection.

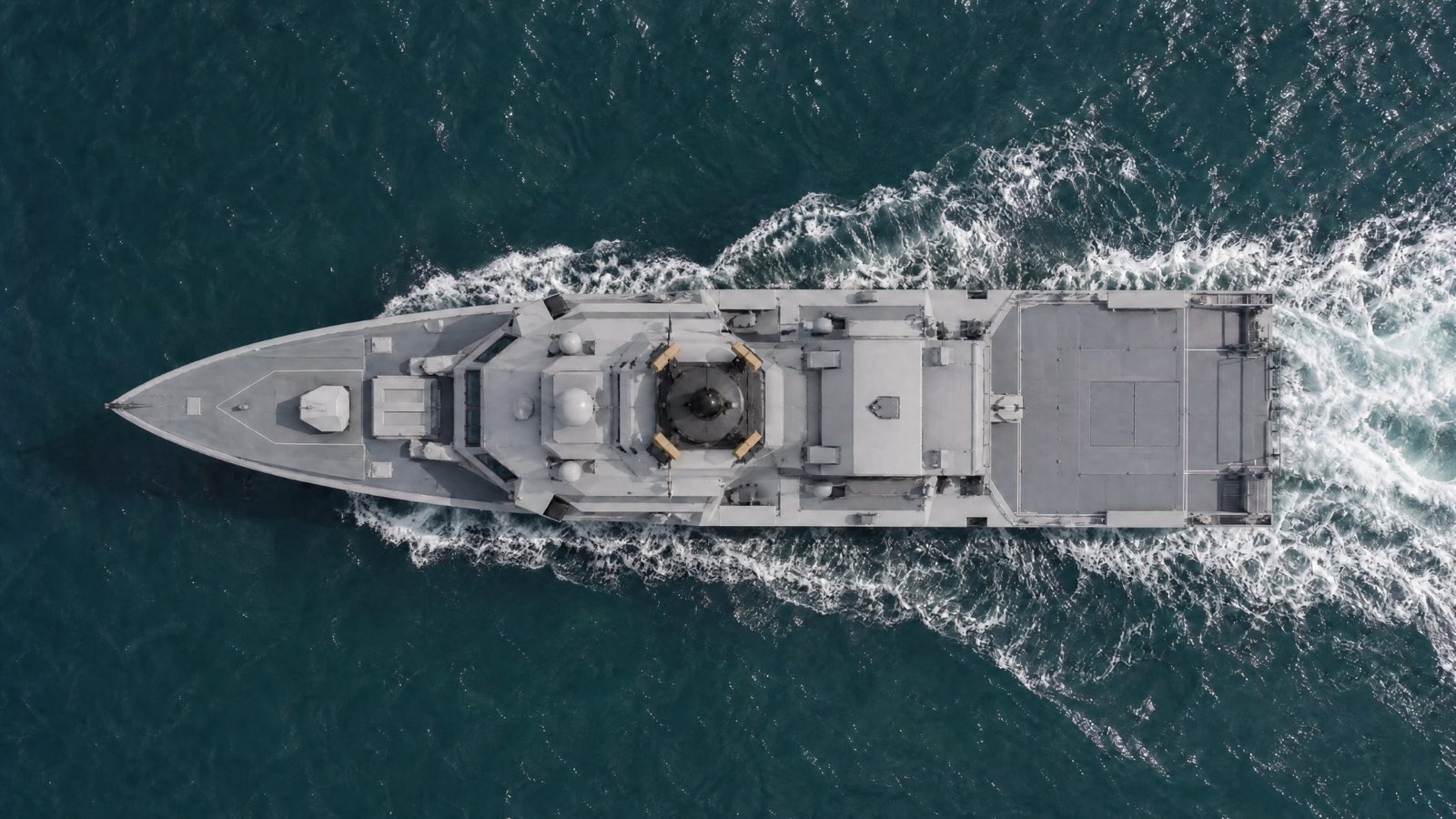

Protecting ships, boats, and maritime assets against drones and loitering munitions — integrated into the vessel's combat-management system.
A 4D MESA radar and a naval-grade EO/IR suite are deck- or mast-mounted and feed RAVEN-OS; deck-mounted canister interceptors provide the hard-kill layer. The detect-to-defeat chain runs identically, adapted for the maritime environment and ship motion.
Patrol boats · naval vessels · offshore platforms · maritime asset protection.

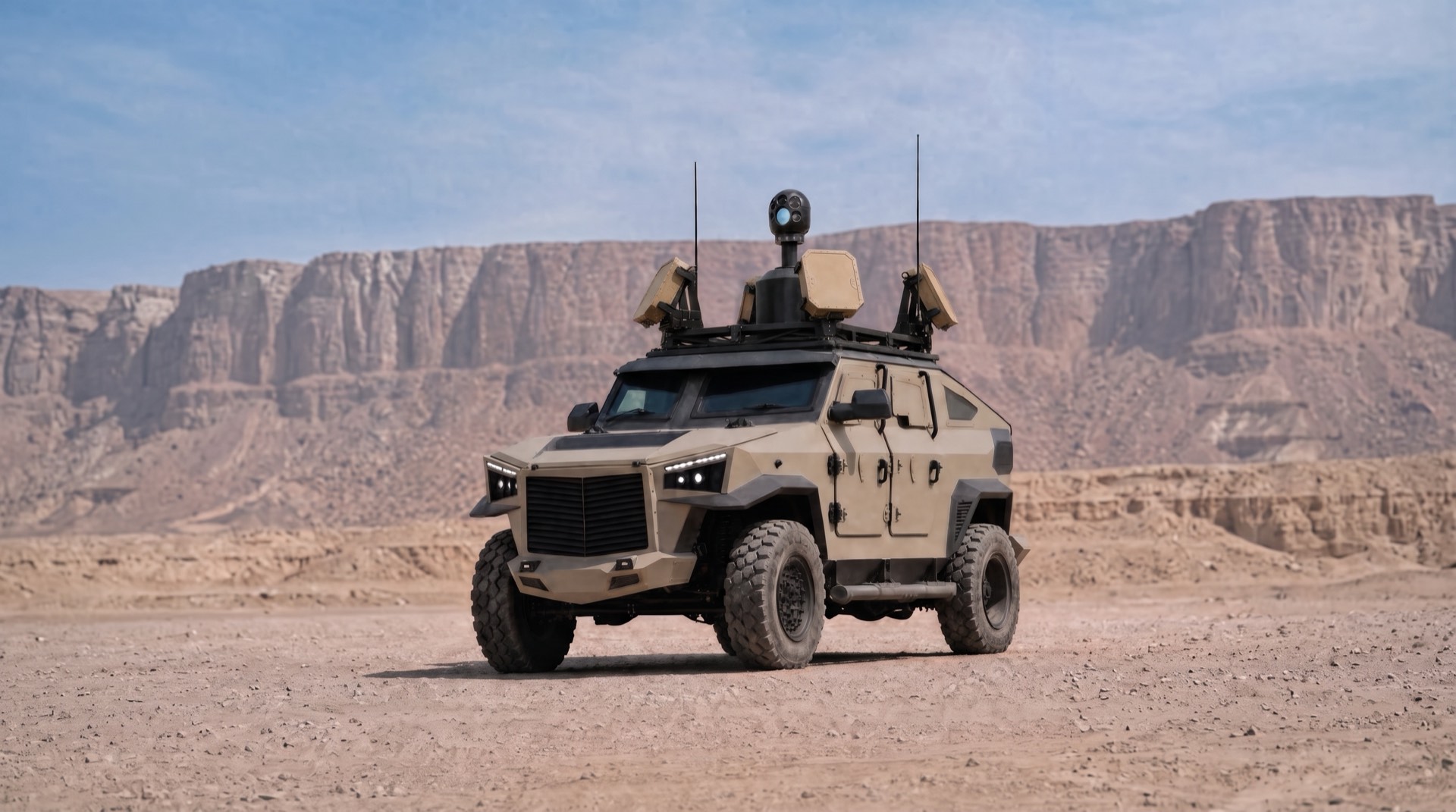

A self-contained drone-defense bubble that moves with the force — field and border protection with full 360° coverage on the move.
Four MESA radar panels give full 360° coverage from the vehicle, a gimbal confirms targets, RF cyber-takeover provides the non-kinetic option, and stacked close-range interceptors deliver hard-kill — all coordinated by RAVEN-OS on the move.
Borders · field forces · convoy & force protection.
Short-range protection for stadiums, events, and public venues — where defeating a drone must never endanger the crowd below.

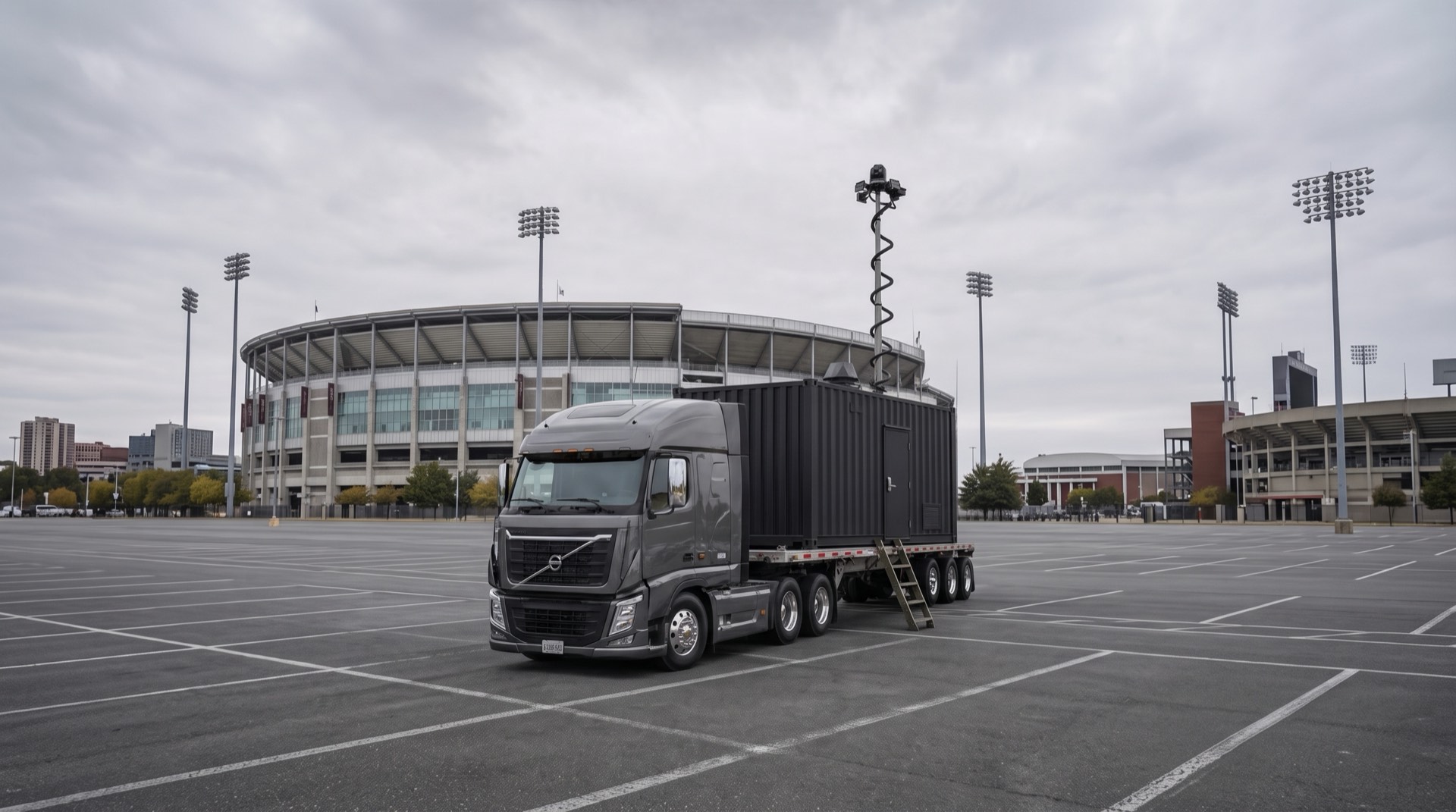

A 12 m container deploys rising masts carrying an EchoGuard short-range 4D MESA radar and an EO/IR gimbal; detection and identification run through RAVEN-OS. Defeat is deliberately crowd-safe — RF cyber-takeover lands the drone without jamming public communications, and a net-capture interceptor captures it without detonation.
Stadiums · public events · mass gatherings · urban venues.
Define a customizable perimeter around the stadium or event.
RAVEN detects, identifies, and locates unauthorized drones and pilots — often before take-off.

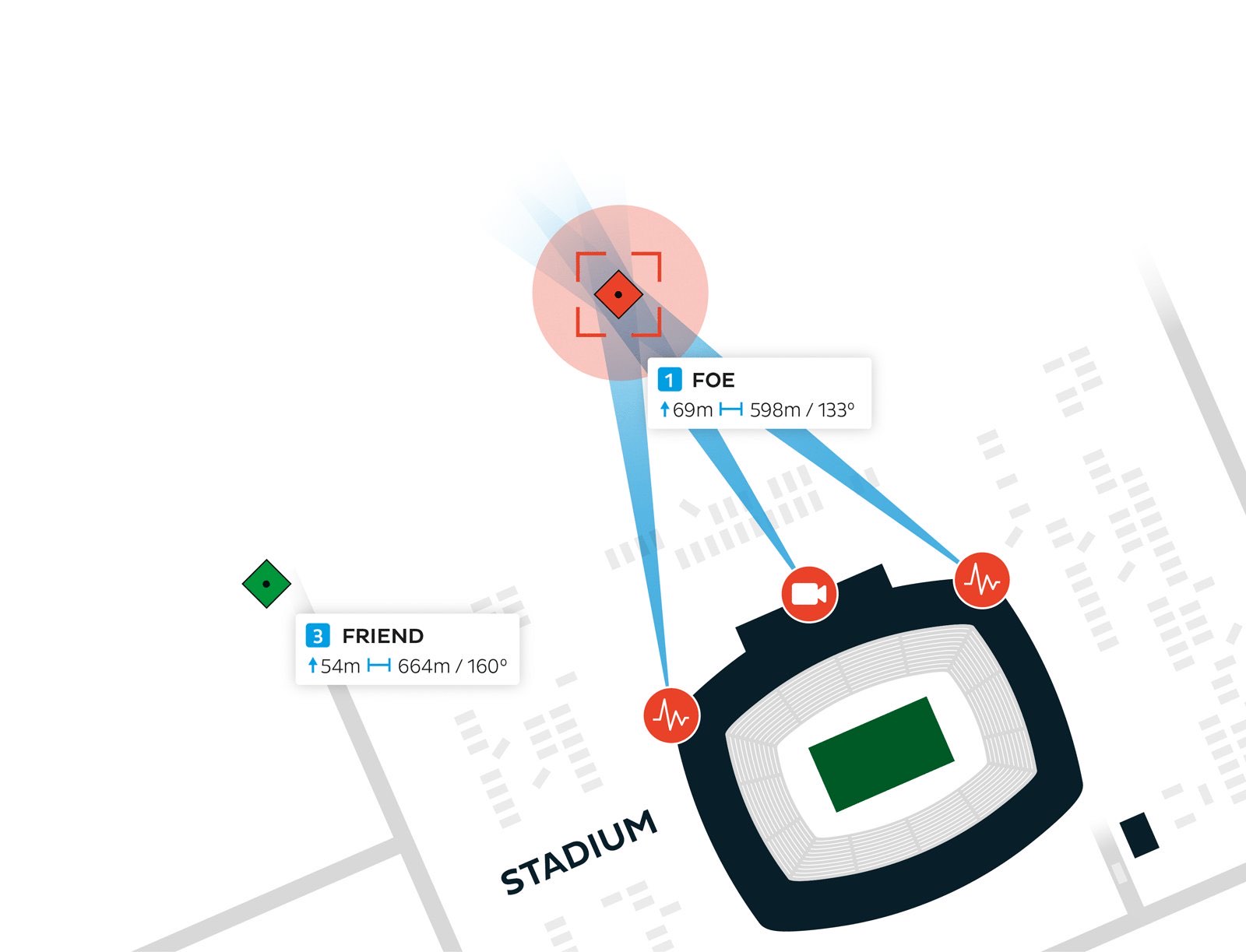

Friend/Foe rules let RAVEN-OS auto-alert security the moment an unauthorized drone appears.
Camera and radar sensors track the flight path and fix the pilot's position.
RAVEN pinpoints both the drone and the pilot for fast, effective mitigation.
Predictive analytics expose gaps, update SOPs, and log evidence for law enforcement.
Stadiums, racecourses, festivals — RAVEN-C secures the airspace over any venue where crowds gather.
| RAVEN-OS | RAVEN-F | RAVEN-X | RAVEN-M | RAVEN-T | RAVEN-C | |
|---|---|---|---|---|---|---|
| Environment | All domains | Fixed | Mobile | Maritime | On the move | Public |
| Platform | Software C2 | Site install | 40-ft container | Deck / mast | Vehicle | 12 m + masts |
| Sensors | Fusion only | MESA+EO/IR+RF | MESA+EO/IR | Naval MESA | 4× MESA | Short-range |
| Soft-Kill | Tasking | RF takeover | RF takeover | — | RF takeover | RF takeover |
| Hard-Kill | Tasking | Close + long | Vertical launch | Deck canister | Close interceptor | Net capture |
| Best For | National C2 | Bases · CNI | Rapid deploy | Vessels | Borders | Events |
Detailed multi-layer threat coverage — detection, identification, RF takeover, GNSS, hard-kill, and long-range interception across the full threat set — is provided in the downloadable capability brief.
RAVEN-OS governs every configuration. One operating picture, one rules engine, one authorization workflow — from a single site to a national network.
The same detect-to-defeat chain everywhere. Operators trained on one configuration understand them all, so a force scales without re-training.
Shared sensors, effectors, spares, and MRO across land, sea, and air — one sustainment base instead of six, lowering lifetime cost and risk.
G7X Defense is a systems integrator delivering sovereign counter-UAS capability — from procurement and integration through lifecycle support — to armed forces, critical-infrastructure operators, and homeland-security agencies.
